VHF Yagi Antenna Comparison: Choosing the Best Antenna for Your Station

A well-designed VHF Yagi antenna can dramatically improve your station’s performance, whether you’re working weak-signal DX, contesting, satellite communications, or simply trying to extend the range of your local contacts. However, not all Yagi antennas are created equal. Differences in boom length, element spacing, gain, front-to-back ratio, and mechanical construction can have a significant impact on performance.

In this comparison, I’ll look at several popular VHF Yagi antennas, explain what the specifications actually mean, and help you decide which design is best suited to your operating style.

For the dedicated radio operator, pushing the limits of communication isn’t just a hobby—it’s a technical pursuit. In the Very High Frequency (VHF) spectrum, where line-of-sight propagation rules, the choice of antenna is the single most critical factor separating a routine contact from a record-breaking DX connection.

The VHF Yagi antenna stands as the undisputed champion for directional performance, but not all Yagis are created equal. This guide moves beyond the basics, offering an in-depth analysis for experts looking to make an informed decision. We will dissect design principles, compare critical performance metrics, and explore the practical trade-offs that determine real-world success, ensuring your next antenna investment delivers optimal performance for your specific operational goals.

Understanding the VHF Yagi: Core Principles and Applications

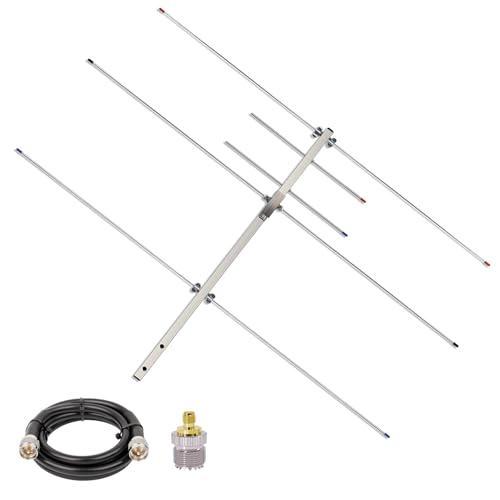

At its core, a VHF Yagi is a highly efficient directional antenna designed to concentrate radio frequency (RF) energy in a single direction. Based on fundamental antenna theory developed by Hidetsugu Yagi and Shintaro Uda, its design is an elegant interplay of parasitic elements. The structure consists of a single driven element (typically a dipole or folded dipole, which is connected to the feedline), a slightly longer reflector element behind it, and one or more shorter director elements in front. The reflector bounces RF energy forward, while the directors progressively focus it into a tight, forward-looking beam. This clever arrangement is what gives the Yagi its signature gain and directionality, transforming an omnidirectional signal into a focused stream of energy.

In the context of VHF, these antennas are most commonly designed for amateur radio bands like the 2-meter (144-148 MHz), 1.25-meter (222-225 MHz), and 70-centimeter (420-450 MHz) bands. The physical dimensions of the elements and their spacing are precisely calculated for resonance at these higher frequencies, making them smaller and more manageable than their HF counterparts.

Key Performance Metrics

For the discerning operator, three metrics define a Yagi’s effectiveness:

• Gain: Measured in dBi (decibels relative to an isotropic radiator) or dBd (decibels relative to a dipole), gain quantifies the antenna’s ability to concentrate power in its favored direction. Higher gain translates directly to stronger transmitted and received signals, which is crucial for weak-signal work.
• Front-to-Back Ratio (F/B Ratio): Expressed in dB, this metric measures how effectively the antenna rejects signals from the rear. A high F/B ratio is vital for reducing interference (QRM) from unwanted directions, a massive advantage in crowded contest environments or urban settings.
• Beamwidth: This is the angular width of the antenna’s main lobe, measured in degrees at the half-power (-3 dB) points. A narrow beamwidth indicates highly focused energy but requires more precise aiming with a rotator. A wider beamwidth is more forgiving but offers less gain.

These metrics are intrinsically linked. Increasing the number of elements on a longer boom will generally increase gain, improve the F/B ratio, and narrow the beamwidth, demonstrating the fundamental design trade-offs involved.

Primary Applications for Experts

The directional capabilities of the VHF Yagi antenna unlock specialized communication modes. In amateur radio, it’s the go-to choice for terrestrial DXing (long-distance contacts via tropospheric ducting), high-stakes contesting, and satellite communication where tracking a low-earth-orbit (LEO) satellite is necessary. It’s also essential for advanced modes like meteor scatter and Earth-Moon-Earth (EME) communication, which rely on reflecting signals off fleeting or distant objects. Beyond the ham shack, professional applications are widespread, including public safety repeater links, commercial two-way radio systems, and scientific research requiring precise signal reception from a specific source.

One specification I encourage operators not to obsess over is published gain. In practice, antenna height, feedline quality, and surrounding terrain often have a greater impact on VHF performance than the difference between two antennas whose gain figures differ by only a fraction of a decibel.

Comparing VHF Yagi Designs: Performance, Construction, and Trade-offs

Selecting the right VHF Yagi involves a careful evaluation of its design, construction, and the inherent performance trade-offs. While more elements and a longer boom seem universally better, the reality is far more nuanced, demanding a choice that aligns with your specific operational context, physical space, and durability requirements.

Structural and Electrical Design Variations

The most significant differentiators in Yagi performance are element count and boom length. A compact 3-element Yagi offers a substantial upgrade over an omnidirectional vertical, providing moderate gain and a forgiving beamwidth. It’s an excellent choice for portable operations (SOTA/POTA) or space-restricted home stations. A 5-element Yagi represents a popular middle ground, delivering a noticeable increase in gain and a better F/B ratio without becoming excessively large. For the serious DXer or contester, long-boom, multi-element designs (10+ elements) provide maximum gain and razor-sharp directivity, but their size demands robust mounting hardware and a reliable rotator. The boom length itself is critical; a longer boom allows for optimized element spacing, which is key to maximizing gain per element.

Polarization Considerations

At VHF frequencies, polarization is not an afterthought—it’s a critical decision. The orientation of the antenna elements determines the signal’s polarization, and a mismatch can result in over 20 dB of signal loss.

• Horizontal Polarization: This is the standard for most weak-signal terrestrial work, including SSB, CW, and digital modes. It generally offers better performance for long-distance contacts due to its interaction with the ground.
• Vertical Polarization: This is primarily used for FM operations, repeaters, and local communication, as most mobile and handheld radios use vertically polarized antennas.
• Circular Polarization: Essential for satellite work, this involves using two Yagis on the same boom, phased 90 degrees apart (creating a cross-Yagi). It mitigates the signal fading caused by a satellite’s rotation (spin fading).

Construction Materials and Durability

A high-performance antenna is a long-term investment that must survive the elements. Most high-quality Yagis use 6061-T6 aluminum tubing for the boom and elements, offering an excellent strength-to-weight ratio. Hardware, such as element-to-boom clamps and U-bolts, should be stainless steel to prevent corrosion. Pay close attention to wind loading specifications, especially for long-boom models, to ensure your mast and rotator can handle the mechanical stress in a storm. A well-built antenna will provide decades of reliable service.

Yagi Configuration	Typical Gain (dBi)	Typical F/B Ratio (dB)	Beamwidth (E-Plane)	Approx. Boom Length	Ideal Use Case
3-Element Yagi	7-9 dBi	15-20 dB	~60°	< 4 ft (~1.2m)	Portable (SOTA/POTA), small lots, beginner DX.
5-Element Yagi	9-11 dBi	18-22 dB	~45°	6-8 ft (~1.8-2.4m)	General purpose home station, light contesting.
Long-Boom (10+) Yagi	13-17+ dBi	20-25+ dB	< 30°	15-30+ ft (~4.5-9m+)	Serious DXing, EME, competitive contesting.

Optimizing Your VHF Yagi: Installation, Tuning, and Maintenance for Peak Performance

Acquiring a high-quality VHF Yagi antenna is only half the battle; unlocking its full potential hinges on meticulous installation, precise tuning, and diligent maintenance. At VHF, small oversights that might be negligible at HF can lead to significant performance degradation. A systematic approach is essential for achieving the peak performance your antenna was designed for.

Strategic Installation Practices

The mantra “height is might” is especially true for VHF. Your primary goal is to achieve a clear line-of-sight path in your desired direction, free from obstructions like buildings and trees. Mounting the antenna as high as possible and “in the clear” is paramount. For serious work, this means getting above the local roofline and foliage. The choice of mast and rotator is equally critical. A heavy-duty mast is necessary to prevent flexing, while a reliable rotator with a clear position indicator allows you to aim the antenna’s narrow beam with precision. Furthermore, be mindful of local noise sources. Installing your antenna away from power lines, HVAC units, and noisy consumer electronics can dramatically lower your receive noise floor, making it possible to hear weak signals.

Precise Tuning and Matching

Proper impedance matching is non-negotiable for efficient power transfer. Use an antenna analyzer to measure the Standing Wave Ratio (SWR) and adjust the length of the driven element as per the manufacturer’s instructions to achieve a 1.5:1 SWR or lower across your target frequency range. Your choice of feedline is another critical factor. At VHF, feedline loss is a major concern. Standard RG-58 or RG-8X coax can lose a significant portion of your signal over long runs. Invest in low-loss coaxial cable like LMR-400, LMR-600, or hardline for any run over 50 feet. Finally, a quality balun (balance-to-unbalanced) or feedpoint choke is essential. It prevents RF from flowing back down the outside of the coax shield, which can distort the antenna’s radiation pattern and introduce noise into your shack.

Long-Term Maintenance and Weatherproofing

An outdoor antenna is constantly exposed to the elements. Proactive weatherproofing is key to its longevity. All coaxial connections should be thoroughly sealed. A common best practice is to first wrap the connection tightly with high-quality electrical tape, followed by a layer of self-amalgamating (rubber) tape, and finally another protective layer of electrical tape. Apply a coat of anti-seize compound to all stainless steel hardware threads during assembly to prevent galling and ensure they can be easily disassembled for future maintenance. Conduct regular visual inspections, especially after high winds or ice storms, to check for physical damage, loose hardware, or a sagging boom.

Making the Right Choice: Expert Recommendations and FAQs

Choosing the right VHF Yagi antenna requires a synthesis of your operational ambitions and practical constraints. There is no single “best” antenna; there is only the best antenna for your specific situation. By carefully weighing the trade-offs between gain, size, cost, and complexity, you can select a tool that will serve you well for years to come.

Synthesizing Your Decision

To narrow down your options, consider these scenarios:

• For the Portable Operator (SOTA/POTA): Your priorities are weight, ease of assembly, and a small footprint. A lightweight 3 or 4-element Yagi that breaks down easily is the ideal choice. Gain is secondary to portability.
• For the Suburban Home Station: You likely have some space limitations but want a significant performance boost. A 5 to 7-element Yagi on a modest mast and rotator offers an excellent balance of gain, directionality, and manageable size.
• For the Dedicated DXer or Contester: Your goal is maximum performance. This means investing in a long-boom, multi-element Yagi, or even a stacked array of them. This path requires a robust tower, a heavy-duty rotator, and a commitment to optimizing every part of the system.
• For the Satellite Enthusiast: Your needs are specialized. A pair of cross-polarized Yagis (one for VHF, one for UHF) with an elevation rotator is the standard setup for reliably working LEO satellites.

Ultimately, the most critical factor is aligning your antenna choice with your primary operating goals. Don’t overbuy if you lack the space to install a large antenna properly, and don’t under-buy if your ambitions require the highest possible performance.

Frequently Asked Questions (FAQs)

Q: How does terrain affect Yagi performance at VHF?
A: Terrain is a dominant factor. Since VHF propagation is primarily line-of-sight, hills, buildings, and even dense forests can block or weaken signals. However, favorable terrain can be an advantage. A location on a hilltop provides a significant advantage. Additionally, a phenomenon known as “knife-edge diffraction” can allow signals to bend over sharp-edged obstacles like mountain ridges, enabling contacts that would otherwise be impossible.

Q: What are the considerations for stacking multiple VHF Yagis?
A: Stacking two or more identical Yagis can provide a 3 dB gain increase (effectively doubling your power) and a significant narrowing of the radiation pattern. The key is proper spacing and phasing. The antennas must be spaced correctly (both vertically and horizontally, depending on the goal) and fed with a precisely constructed phasing harness to ensure the signals combine in-phase. Improper stacking can actually degrade performance, so it’s a project that requires careful research and execution.

Q: Can a single VHF Yagi be used for both horizontal and vertical polarization?
A: Yes, but not simultaneously without a specialized design. A standard Yagi’s polarization is determined by its mounting orientation. If the elements are parallel to the ground, it’s horizontally polarized. If they are perpendicular to the ground, it’s vertically polarized. You can manually change the polarization by remounting the antenna, or some operators install a polarization rotator that can physically turn the antenna along its boom axis. A “cross-Yagi” design, with two sets of perpendicular elements, can be switched between horizontal, vertical, and circular polarizations with proper phasing.

A well-chosen and properly optimized VHF Yagi is more than just an antenna; it’s a precision instrument that unlocks the full potential of the VHF bands. By investing in the right design for your goals and dedicating the effort to a meticulous installation, you equip yourself for superior communication and countless rewarding contacts.
